Saunum

Saunum Air 5 Sauna Heater Package

Saunum Air 5 Sauna Heater Package

Air Series, 4.8kW Sauna Heater Package

Model: AIR 5 CSB PKG

Regular price $4,565.00 USD
Regular price Sale price $4,565.00 USD
Sale Sold out

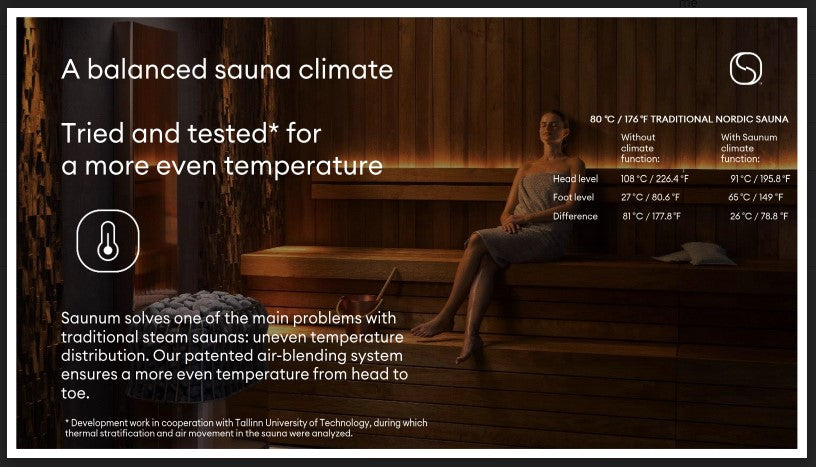

  • Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
  • European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
  • Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 132 pound stone capacity.
  • Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
  • For sauna rooms from 106 to 212 cu. ft.
  • UL-listed for safety
View full details
  • Key Features

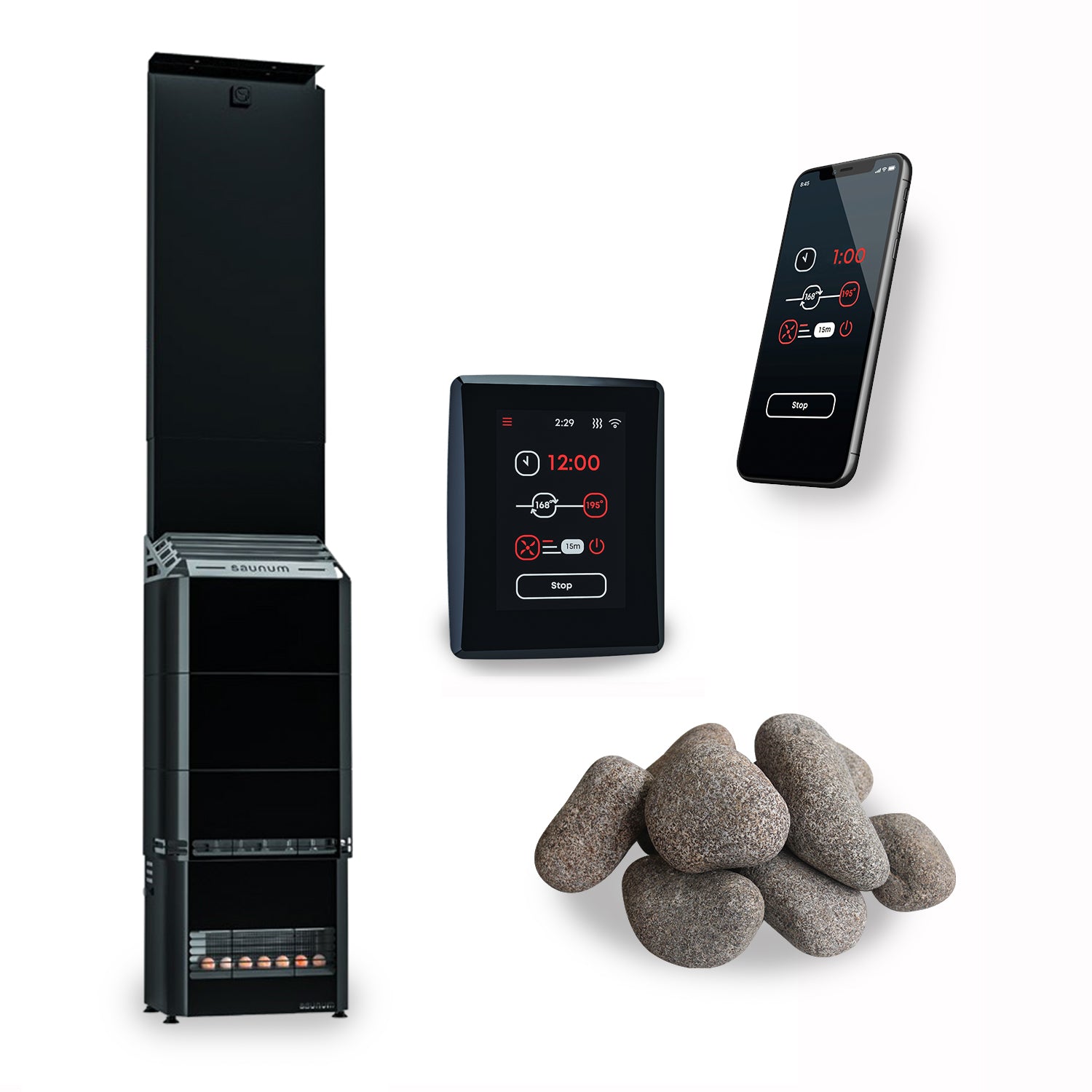

  • Includes
  • Shipping
  • Specifications Table

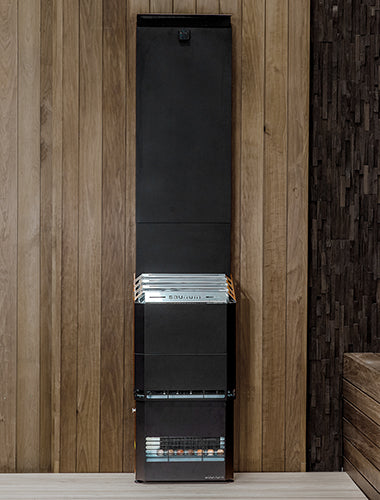

Air 5 Sauna Heater

  • Air Mixing Technology –
    Saunum patented air blending system mixes cold oxygen-rich air from the
    floor with hot oxygen-poor air off the ceiling to solve the discomfort
    so many associate with sauna. Whether you like it extremely hot, or just
    warm, Saunum delivers both in a way that heat and oxygen are felt head
    to toe.
  • European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
  • Massive Stone Capacity –
    Stones are the heart of a Nordic sauna. Ample stones result in softer,
    more even heat, and can produce more luxurious steam. Large 132 pound
    stone capacity.
  • Himalayan Salt Reservoir – Himalayan
    Salt Spheres are positioned within the air stream so that salt ions are
    propelled throughout the sauna to deliver health benefits.
  • Wi-Fi Control – The
    available AirIQ Wi-Fi Control allows you to activate a tailored sauna
    profile and have your custom sauna ready at the time that you specify on
    your mobile device.
  • Dry your Sauna – Go
    ahead, toss water onto the rocks! Saunum is engineered for
    water-tossing, and when you're done enjoying the steam, the patented fan
    system will conveniently help dry your sauna.
  • UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
  • Available Aromatherapy –
    Add another sensory layer with Saunum's optional aromatherapy system,
    which infuses aroma into the steam to further transform your experience.
  • For sauna rooms from 106 to 212 cu. ft.

AirIQ Wi-Fi Control

  • Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
  • Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
  • Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
  • Classic Nordic Steam SaunaFor temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
  • Humid Steam-Rich SaunaFor temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
  • Mild, Relaxing SaunaFor temperatures from 104°F - 131°F  (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
  • AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
  • Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
  • Modbus integration for smart home connection
  • Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile appSauna is ReadyHeating StatusDoor is OpenOverheating Protection Applied
  • Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
  • Outside sauna room installation
  • Screen lock
  • Child safety lock
  • Temperature sensor
  • Door sensor

Sauna Stones

  • High-quality olivine diabase raw stone
  • Rounded, pre-washed, and ready to use
  • Durable with high-heat capacity
  • Stones range from 2" to 4" (5-10 cm)

Air 5 Sauna Heater

  • Nordic Black Metal Stone Basket
  • Heat Equalizing Module
  • Telescopic Hot Air Intake
  • Heating Element Air Tunnels (3)
  • Himalayan Salt Spheres (7)
  • Hot Air Intake Cap
  • Stainless Steel Protective Grille
  • Heating Element Electrical Cable, 5' (152.4 cm)
  • Heat Equalizer Electrical Cable, 5' (152.4 cm)
  • Room Temperature Sensor & Cable, 9.5' (289.56 cm)
  • Door Sensor & Cable Assembly, 9.83' (299.62 cm)
  • IQAir Display Panel Cable, 16' (487.68 cm)
  • Quick Install Guide
  • Installation and Operation Manual
  • Limited Warranty

AirIQ Wi-Fi Control

  • Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
  • Wall Mounting Plate and Fasteners
  • Power Unit
  • Installation and Operation Manual
  • 2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

  • 132 lbs of 2" to 4" (5-10 cm) Round Sauna Stones

About
This Delivery: This sauna heater system requires a scheduled
appointment. It arrives on a wooden pallet and is encased in three-ply
cardboard for solid protection. The driver is responsible for “delivery
only” and will provide limited assistance at the site. Prior to
shipping, we may contact customers to share shipment details and needs
and discuss any extenuating delivery circumstances that may complicate
or cause additional delivery expenses. Our goal is to ensure your
project’s success.

Accessory
Freight: Sauna accessories can be shipped with this sauna heater to
save on shipping costs. Consider adding accessories to sauna heater
orders to bolster margins.

Model

AIR 5 CSB PKG

Heat Equalizing System

Model

AIR 5

Certification/Global Safety Rating

UL (Underwriters Laboratories)

Heat/Steam Equalizer Module

3-Speeds, Whisper-Quiet Operation

Ceiling Hot Air Intake

17.72" x 4" (450.09 x 101.6 mm)

Cool Air Intake Type

Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor

Cool Air Intake Size

2" x 2.75" (50.8 x 69.85 mm)

Blended Air Output

4.31" x 14.13" (109.47 x 358.90 mm)

Himalayan Salt and Aroma Tray Type

Removable, Slotted

Himalayan Salt and Aroma Tray Size

16.5" x 4.5" (419.1 x 111.76 mm)

Sauna Heater System

Model

AIR 5

Certification/Global Safety Rating

UL (Underwriters Laboratories)

Heater Body Style

Solid Steel - Nordic Black

Heating Elements

Incoloy (Stainless Steel)

Heating Element Protection

Air Tunnels, Slotted Stainless Steel, Three

Room Size

106 - 212 (3-6 Cubic Meters)

Wattage Rating

4800

Operating Voltage

240 VAC

Phase

Single

Amperage

20

Weight

106 lbs (48 kg)

Shipping Weight with Stones

238 lbs (108 kg)

Width

18.3" (465 mm)

Depth

12.4" (315 mm)

Height

88.58" - 94.48" (2250-2400 mm)

Minimum Ceiling Height

71.95" (1827.53 mm)

Stone Capacity

132 lbs (60 kg)

Stone Size

2" to 4" (5-10 cm)

Circuit Breaker

30 Amp

Wire Size to Power Unit

(2) #10 + N + G

Wire Size - Power Unit to Elements

7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)

Wire Size - Power Unit to Heat Equalizer

5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)

Room Temperature Sensor

Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

Display Panel

Model

AIRIQ WI-FI

Certification/Global Safety Rating

UL (Underwriters Laboratories)

Type

Digital, Soft-Touch

Response

Tactile with Haptic Feedback Technology

Language Selection

16-Languages

Wi-Fi Capability

Wi-Fi, App-Based Updates, and Operation

Notifications

Sauna is Ready, Heater Status, Open Door, and Overheating Protection

Safety Features

Admin, Screen Lock, Door Sensor, and Overheat Protection

Color

Nordic Black

Heat Equalizing Control

3-Speed Adjustability

Width

3.3" (83.82 mm)

Depth

.8" (20.32 mm)

Height

4.1" (104.14 mm)

IP Rating

IP20

Minimum Temperature Setting

104-Degrees Fahrenheit (40-Celcius)

Maximum Temperature Setting

194-Degrees Fahrenheit (90-Celcius)

Duration Timer

1 - 6 Hours

Display Panel Cable

4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)

Door Sensor and Cable Assembly

2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)

Door Sensor Probe

1" Long and .24" Diameter (25 x 6 mm)

Operating Temperature Range

-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)

Programmability

Weekly Scheduling with Three Programmable Sessions

Temperature Settings

Fahrenheit or Celsius

Region Settings

North American and European Versions

Room Temperature Sensor

Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
